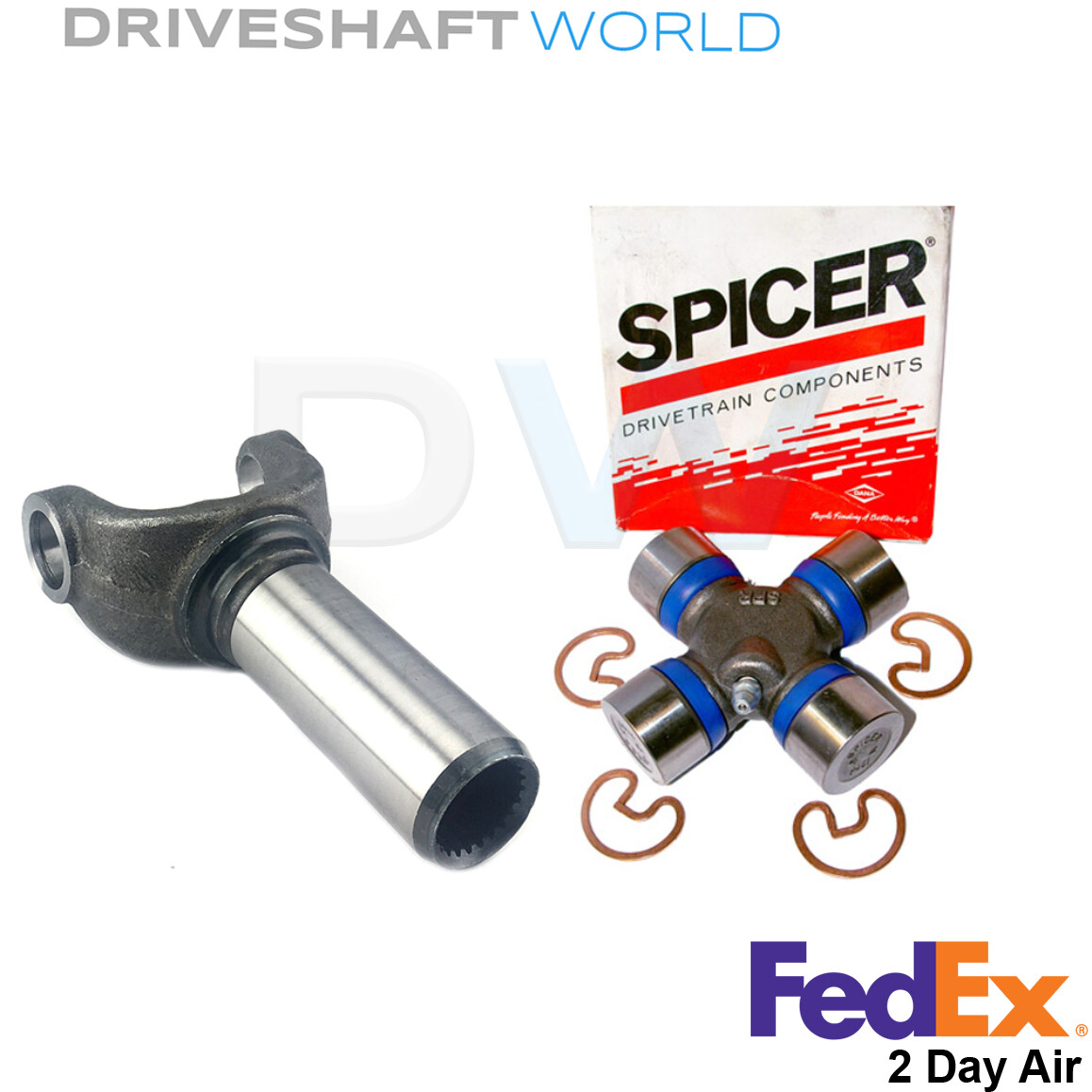

1330 Toyota Tacoma 2WD Driveshaft 23 Spline Slip Yoke & SPICER U-joint 5-213X

You are buying a High-Quality Aftermarket Transmission Slip Yoke and a SPICER Blue Seal Universal Joint that fits the following transmission cases:

  • 2005-2008 Toyota Tacoma 2WD 3.0 V6 Turbo

Aftermarket Transmission Yoke Specifications - GY5002274

U-Join tSeries13530
Spline Major Diameter1.201"
Spline Count23
Spline TypeInvolute
Universal Joint Retaining Width(E)3.875"
Universal Joint Bearing Diameter(D)1.062"
Centerline of Joint to End of Spline(J)6.319"
Ground Hub Diameter(R)1.574"
Counterbore Diameter0.000"
Counterbore Depth0.000"
StyleSnap Ring

Compatible with the following Universal Joints - 5-213X / 5-1330X / SPL25-1X

Universal Joint Specifications:

Genuine Spicer Blue Seal Universal Joint 5-213X

1330 Series

U-Joint Style: Outside Snap Ring
(D) Cap Size: 1.062"
(D1) Cap Outside Diameter: 1.062"
(G1) Distance between Retainer Rings: 3.625"
(D2) Cap Outside Diameter: 1.062"
(G2) Distance between Retainer Rings: 3.625"
Greasable: Yes

Features
  • Brand New Parts
  • Fast & Free US Continental Shipping
  • No hassle returns
