Please note that this item does not include any spacer pieces, as spacing would be a matter of preference where some users may opt to have their installed elements maintain some specific distance apart such as 12 inches apart, or 18 inches, etc, while others will choose to run their fan dipole with a true "fan" design where the elements would all be spreading slightly from each other as they travel out toward their ends. Also please understand that this particular unit will ship approximately one week after purchase because it is a very involved and tedious process to build.

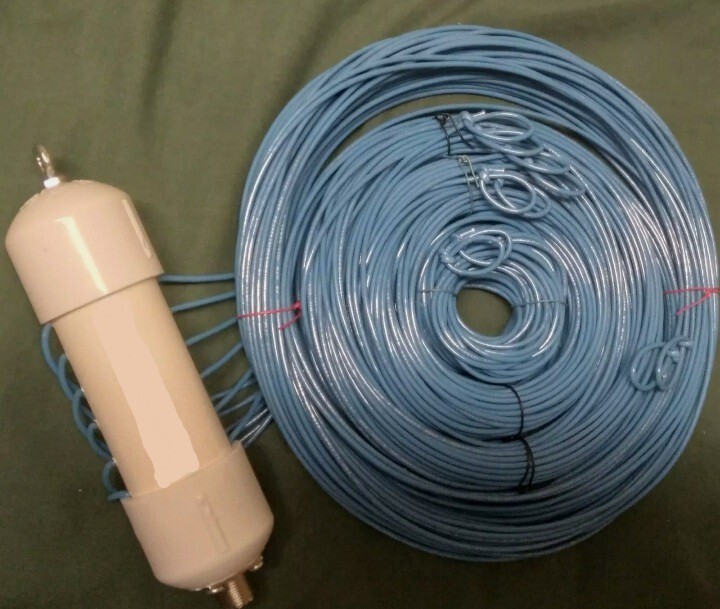

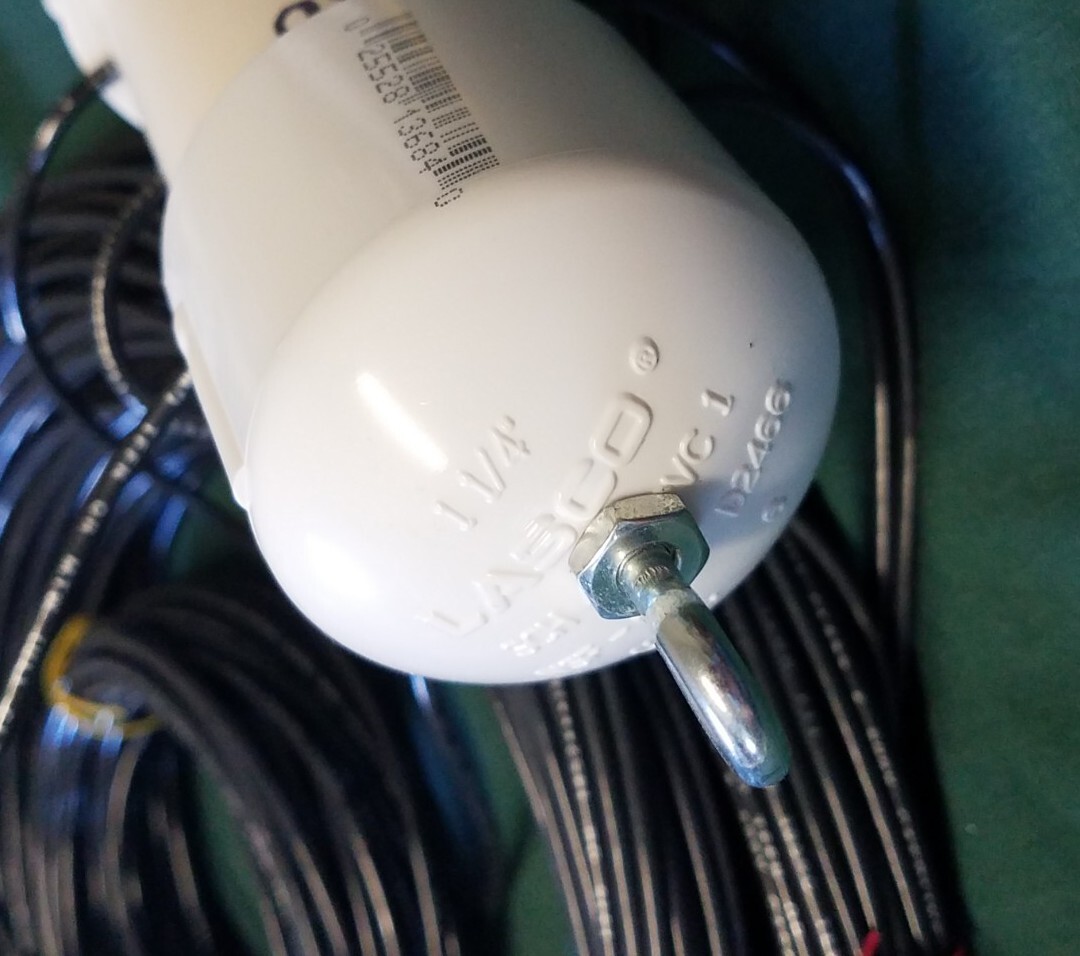

Half-wave Fan Dipole antenna for 160, 80, 40, 20, 15, and 10 meters. The 160 meter legs measure approximately 130 feet on each side. The 80 meter legs measure approximately 66 feet, 10.28 inches (66' 10.28") on each side. The 40 meter legs measure approximately 33 feet, 5.14 inches (33’ 5.14”) on each side. The 20 meter legs measure approximately 16 feet, 8.57 inches (16' 8.57") on each side. the 15 meter legs measure approximately 11 feet, 1.71 inches (11x 1.71") on each side. The 10 meter legs measure approximately 8 feet, 4.26 inches (8' 4.26") on each side. Elements will be spaced about 3/4 of an inch apart where they exit the center insulator, and will be arranged from top to bottom as large to small (160, 80, 40, 20, 15, then 10.) Made from high quality 14 AWG stranded insulated wire. Run your feed line with a PL-259 up and connect in to the SO-239 on the bottom. Color of wire insulation will vary.
I know there are so many listings and varieties that I have posted now, so if you're not seeing the antenna size or fan combination that you're looking for, just message me and I will give you a quote... or I'll give you the item number to punch in, if it happens to be one I already have posted somewhere out here.
This unit will handle up to 1,500 watts. Please note that there are no cancellations after purchase and units are shipped out on the 4th business day after payment is received, because these units are built upon being ordered... so a unit ordered on Monday ships on Friday, a unit ordered on Thursday ships on Wednesday, and a unit ordered on the Monday before Thanksgiving ships on the following Monday.
