Part of the G&H Flat Plate range. The plate is just 1 mm thick. To avoid installation problems and to achieve a flush fitting all wall boxes must be fitted below the plaster depth. The plate is made from brass which is then polished and hand waxed.
G&H Electrical Accessories are a UK manufacturer of high quality switches and sockets. All G&H plates are manufactured to the highest standard from solid brass or steel and are covered by a 24 month warranty. All plates come supplied with a pair of 30mm screws coloured to suit the plate. The entire range fits into UK standard wall boxes (see below for depth recommendations).
Technical details:
Rocker Light Switches: Plate size: 85mm x 85mm (1 gang, 2 gang & 3 gang) Plate size: 145mm x 85mm (4 gang) Use as 1 or 2 way (1 gang intermediate also available) Required back box depth: 25mm or deeper Rated Amps: 10A
Toggle Light Switches: Plate size: 85mm x 85mm (1 gang & 2 gang) Plate size: 145mm x 85mm (3 gang & 4 gang) Use as 1 or 2 way (1 gang intermediate also available) Required back box depth: 25mm or deeper Rated Amps: 10A
Single & Double Plug Sockets: Plate size: 85mm x 85mm (single) Plate size: 145mm x 85mm (double) Required back box depth: 35mm or deeper (wall boxes must be fitted below the plaster depth) Rated Amps: 13A DP. USB Chargers: 1 side 1A & 1 side 2.1A
Dimmer Switches Rotary: Push on/off and turn to dim. Plate size: 85mm x 85mm (1 gang & 2 gang) Plate size: 145mm x 85mm (3 gang & 4 gang) Required back box depth: 35mm or deeper 400W: 60w minimum load, 400w maximum load. Halogen Only 700W: 60w minimum load, 700w maximum load. Halogen Only LED: 1 to 10 LED bulbs (max 120W). 300W max load if used with halogen bulbs. V-Pro Trailing Edge. Use as 1 or 2 way (2 way only with an on/off switch)
20 Amp Switches: Plate size: 85mm x 85mm Required back box depth: 25mm or deeper Rated Amps: 20A DP (Double Pole)
45 Amp Switches: Plate size: 85mm x 85mm (single) Plate size: 145mm x 85mm (double with 13A socket) Required back box depth: 35mm or deeper Rated Amps: 45A DP (Double Pole)
Shaver Sockets: Plate size: 145mm x 85mm Required back box depth: 47mm Rated Voltage: 115V~240V AC
2 & 5 Amp Sockets: Plate size: 85mm x 85mm Required back box depth: 25mm or deeper Rated Amps: 2A / 5A

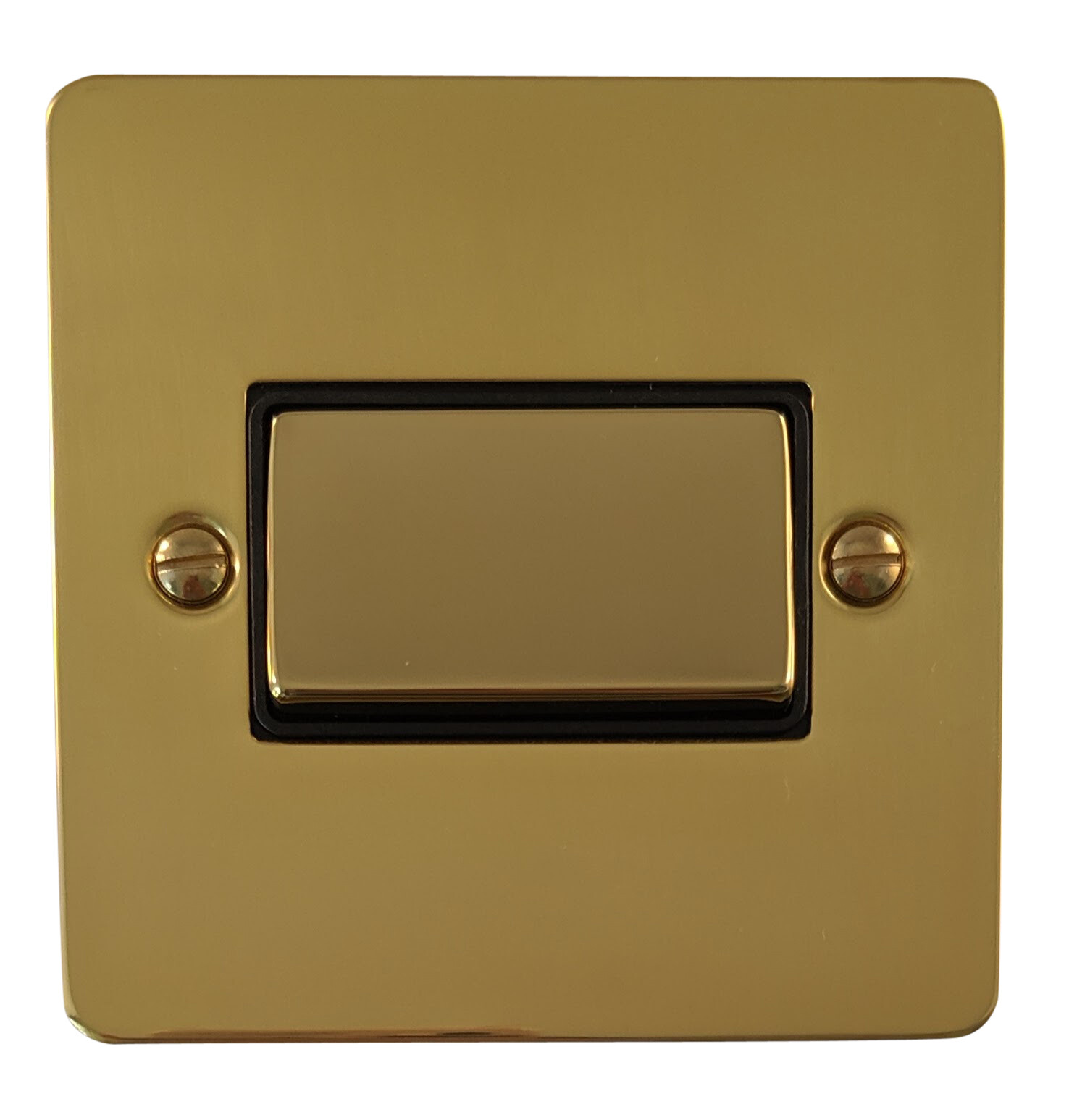

TV, Satellite, RJ45, BT, Fuse, Flex, Triax, Phono & Fan Isolator Sockets: Plate size: 85mm x 85mm Required back box depth: 25mm or deeper
Euro Plates: Plate size: 85mm x 85mm (single) Plate size: 145mm x 85mm (double) These are empty designed for modular inserts to clip in. Required back box depth: Depends on module type.
Blank Plates: Plate size: 85mm x 85mm (single) Plate size: 145mm x 85mm (double) Required back box depth: 16mm or deeper
All purchases are covered by a full manufacturer’s warranty and are covered by our 30 day return period for unwanted products (please see our delivery and returns section for further information). All prices include VAT.
