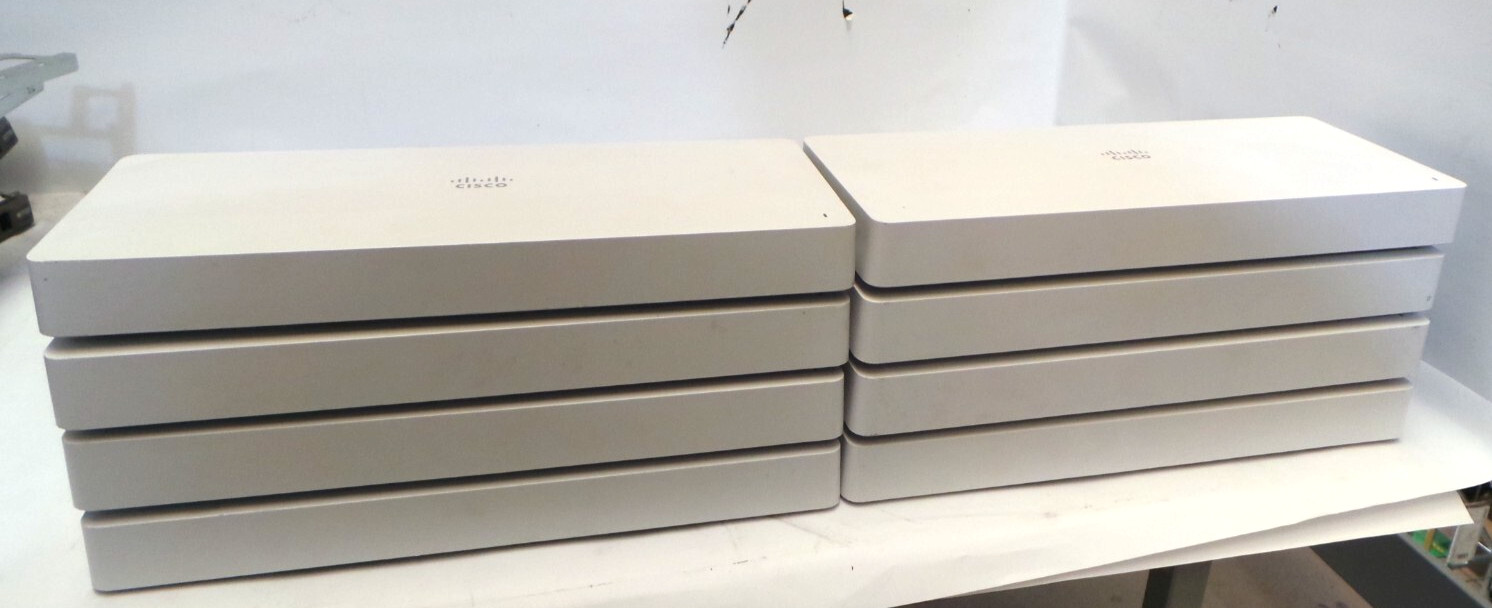

WE HAVE MORE WEBEX UNITS AVAILABLE, SUCH AS WEBEX MINI, WEBEX QUAD AND WEBEX ROOM KIT UNIT. CHECK OUR STORE !!

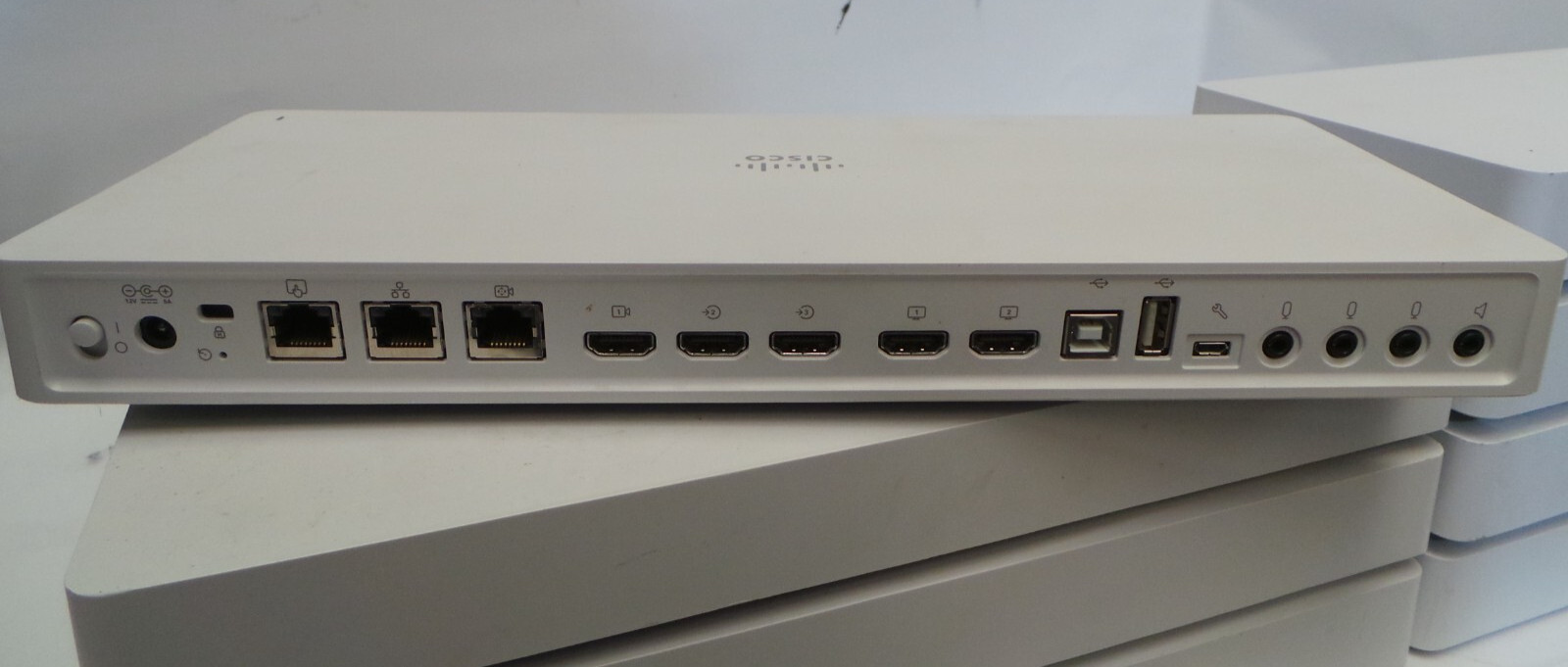

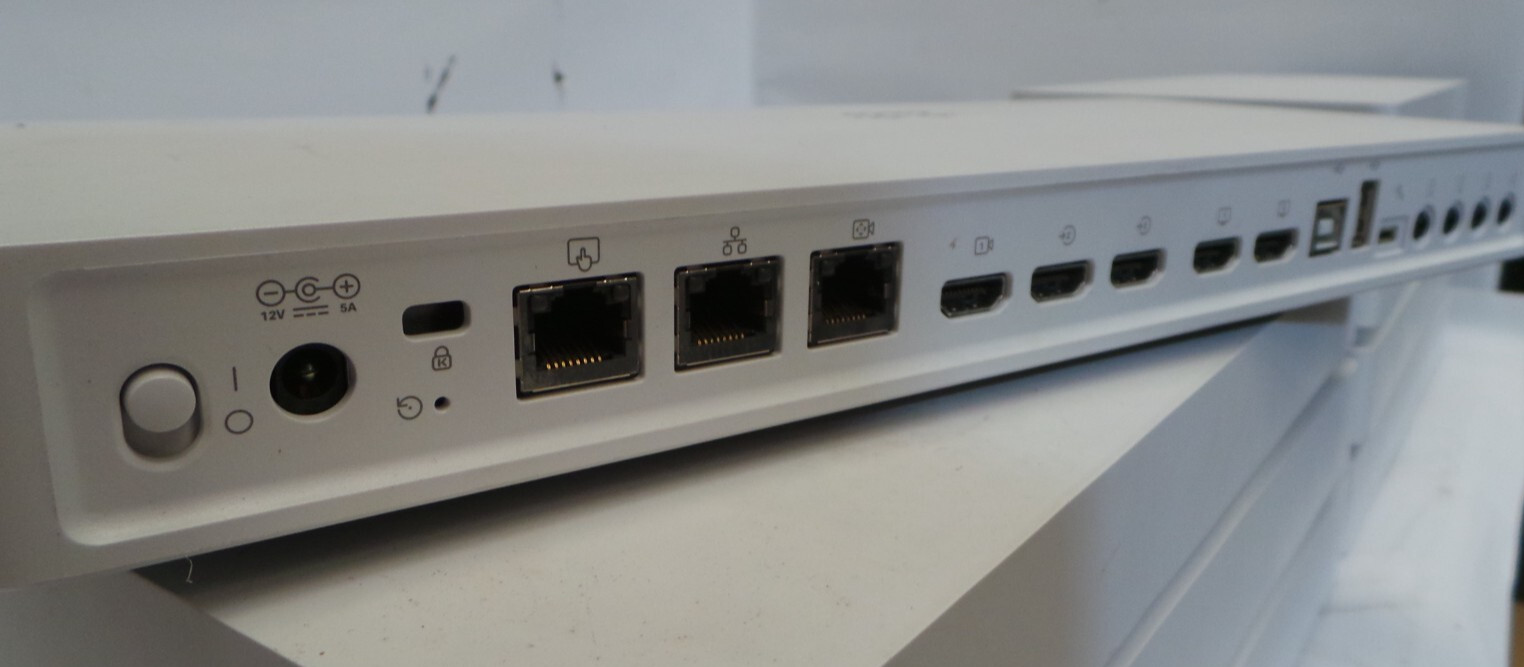

TTC7-25 is a video conferencing system offered by CISCO, designed to provide high-quality video and audio communications for businesses and organizations. This product is easy to set up and use, allowing users to connect and collaborate from anywhere in the world. The system includes a camera, microphone, and display screen, and it supports various communication modes, such as point-to-point calls, multi-party conferences, and webinars. Additionally, TTC7-25 is equipped with advanced features like noise reduction, automatic framing, and pan-tilt-zoom controls, which make video calls more engaging and productive. The system is also highly secure and reliable, with encryption and firewall protection to ensure that all communications are kept confidential and secure. For businesses looking to enhance their communications capabilities and improve collaboration, TTC7-25 is an excellent option that provides reliable and high-quality video conferencing capabilities in a simple, easy-to-use package.
SPECIFICATION
Software compatibility
Cisco Collaboration Endpoint Software Version 9.1.5 or later, or Cisco Webex Room OS
Bandwidth
Up to 6 Mbps point-to-point
Minimum bandwidth for resolution/frame rate
H.264
720p30 from 768 kbps
720p60 from 1152 kbps
1080p30 from 1472 kbps
1080p60 from 2560 kbps
Firewall traversal
Cisco Expressway technology
H.460.18, H.460.19 firewall traversal
Video standards
H.264, H.265
Video inputs
One HDMI input supports formats up to maximum 1080p60
Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
Consumer Electronics Control (CEC) 2.0
Video outputs
Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
CEC 2.0
Audio standards
G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features
High-quality 20-kHz audio
Subwoofer line out
Prepared for inductive loop (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization
Audio inputs
Three microphones, 4-pin mini-jack
Two audio in from HDMI
Audio outputs (external)
1 line out mini-jack (stereo) (Codec Plus)
1 RCA output for subwoofer
1 HDMI outputs
HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers
H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
RFC 4733 DTMF tones in SIP
Date and time support using Network Time Protocol (NTP)
Media adaption and resilience
Uniform Resource Identifier (URI) dialing
Dynamic Host Configuration Protocol (DHCP)
802.1X network authentication
802.1Q Virtual LAN
802.1p (QoS and Class of Service [CoS])
Call Control
Native registration with Cisco Unified Communications Manager
Requires CUCM Version 10.5.2 or later with device pack for Room Kit Plus
Cisco Expressway
Native registration with Expressway
IPv6 network support
Single call stack support for both H.323 and SIP
Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, HTTPS, DNS, DiffServ
Support for both static and automatic IP configuration (stateless address auto configuration)
Security features
Management using HTTPS and SSH
IP administration password
Menu administration password
Disable IP services
Network settings protection
Certificate management
Certificate Authority Proxy Function (CAPF) support for additional security
Manufacturer-Installed Certificates (MIC)
Locally Significant Certificates (LSC)
X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network interfaces codec medium
One Ethernet (RJ-45) 10/100/1000 for LAN
One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN. 2x2 MIMO
Other interfaces
USB 2.0 port, uUSB, factory reset pinhole
Power supplies (2)
100 to 240VAC, 50/60 Hz, 12VDC input
Average 20W, peak 70W
Operating temperature and humidity
0°C to 35°C (32°F to 95°F) ambient temperature
10% to 90% Relative Humidity (RH)
Storage and transport temperature
-20°C to 60°C (-4°F to 140°F) at 10% to 90% RH (noncondensing)
Locking mechanism
Kensington security lock
Dimensions
Codec Plus:
Width: 14.1 in. (35.9 cm)
Height: 1.7 in. (4.3 cm)
Depth: 5.6 in. (14.3 cm)
Weight: 3.9 lb. (1.77 kg)
Precision 60 Camera:
Length: 10.6 in. (26.8 cm)
Height (at max. tilt): 7.1 in (18 cm)
Depth: 6.4 in. (16.3 cm)
Weight: 5.5 lb. (2.5 kg)
Camera overview
1920 x 1080 at 60 fps resolution
Zoom
10x optical zoom
2x digital zoom
20x total zoom
Pan and tilt
Pan range: +/- 100 degrees
Tilt range: +/- 20 degrees
Field of view (FoV)
Horizontal FoV: 80 degrees
Vertical FoV: 48.8 degrees
1.0 m to infinity (wide) focus distance
F-value: 1.5
Camera control: Ethernet
Focus, white balance, and brightness: Automatic or manual
Video interfaces
HDMI 1.4
3G-SDI
Power
12V/3A
100-120/200-240VAC, 50/60 Hz
Network interfaces: One LAN/Ethernet (RJ-45) 10/100 Mbit
