Portable Video Endoscopy Unit in Brief Case

Portable Video Endoscopy Unit in Brief Case

Excellent Quality

We can provide a unique Mobile Endoscopy suite suitable for a range of investigative procedures. An endoscopy unit refers to a dedicated area where medical procedures are performed with endoscopes, which are cameras used to visualize structures within the body.

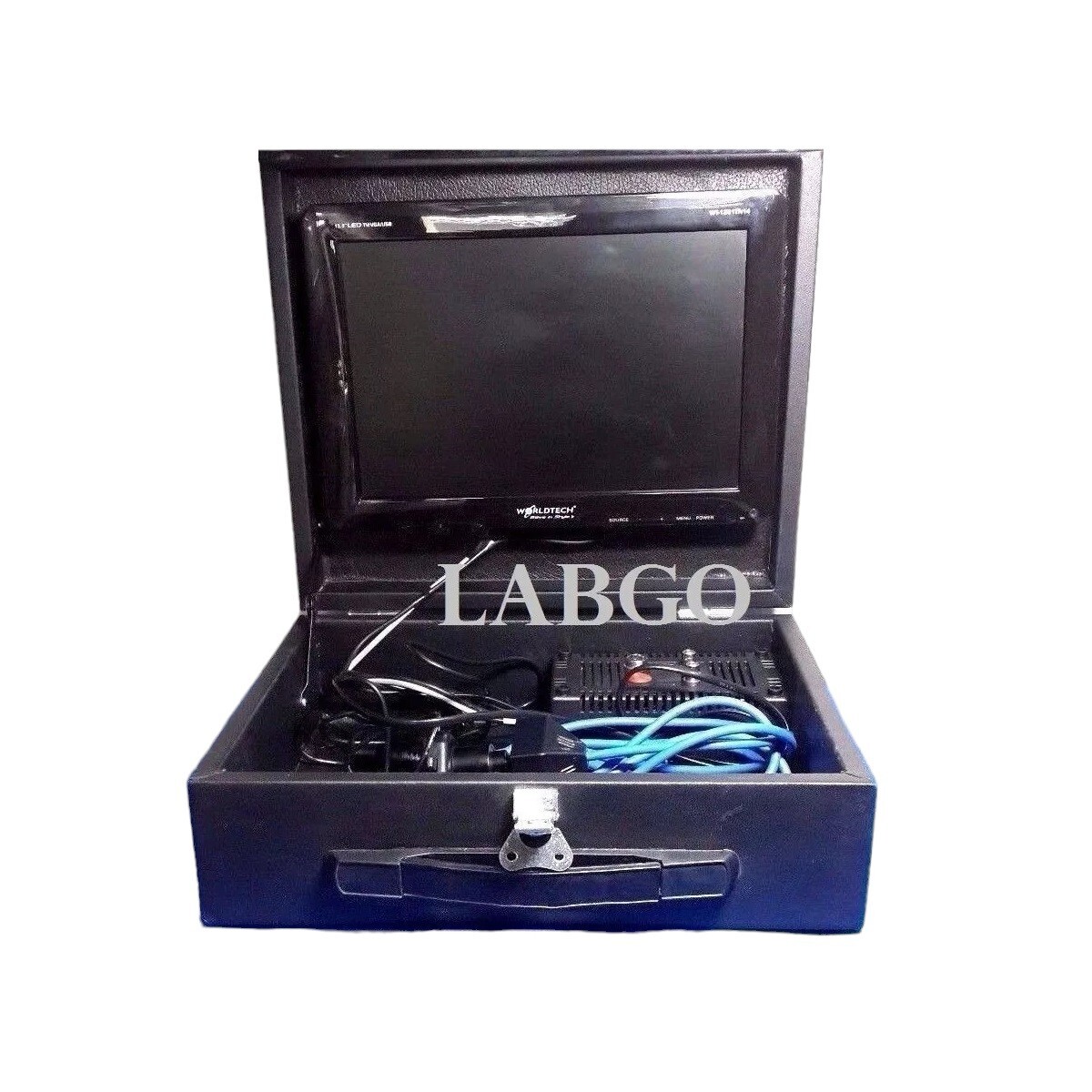

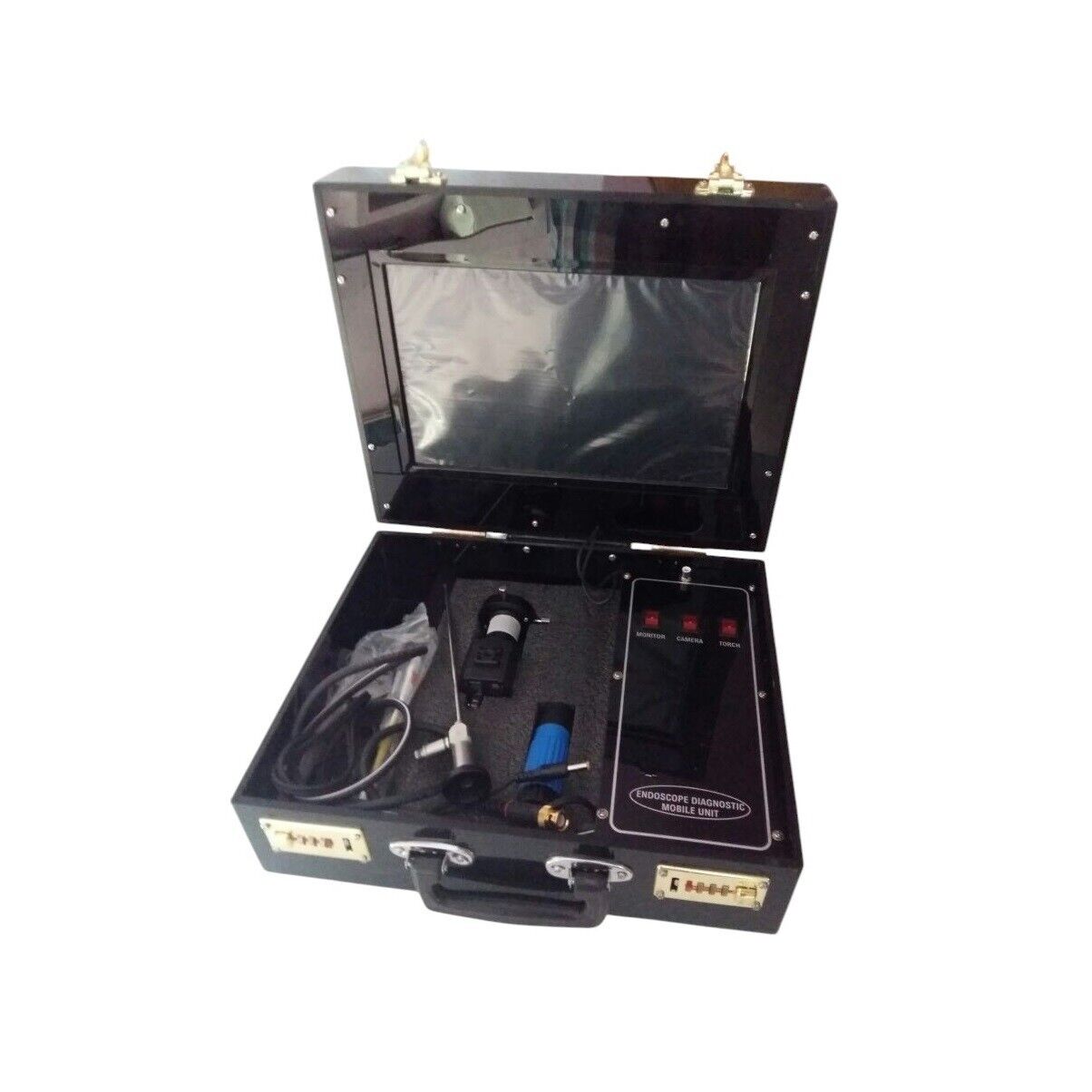

This Brief case Contains following:

- Endoscopy Camera & Coupler (Camera Details are mentioned below)

- LCD 11" Monitor

- Easy to carry everywhere

- Bright white LED Pen Light Source

- Endoscope (0 degree)

- Wooden Briefcase

- Video Output for computer

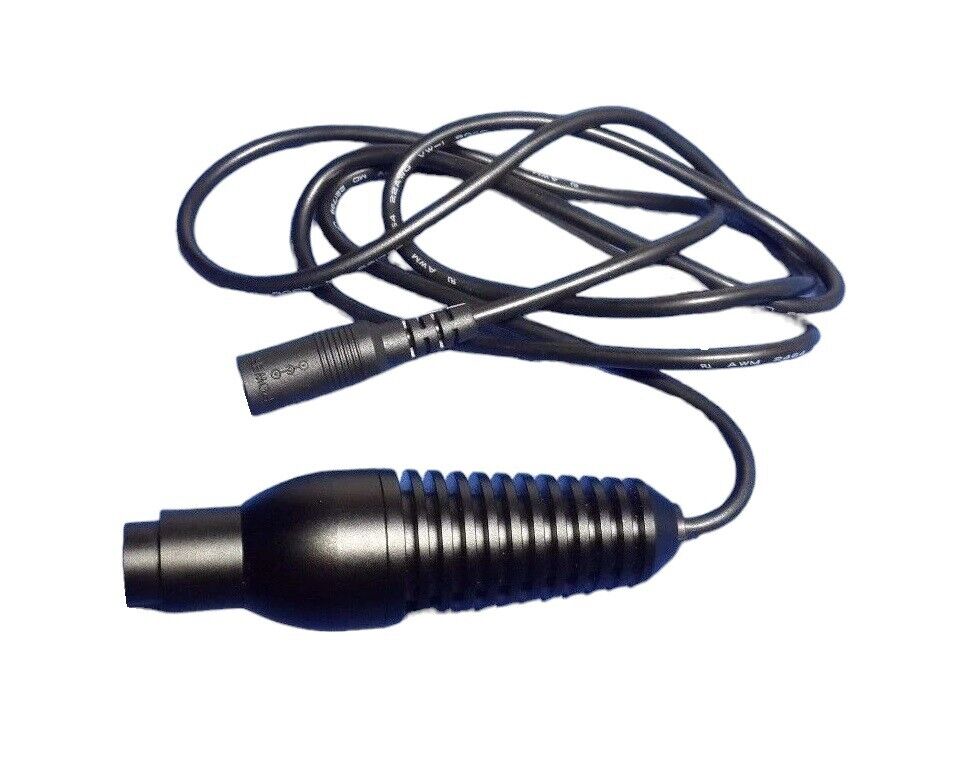

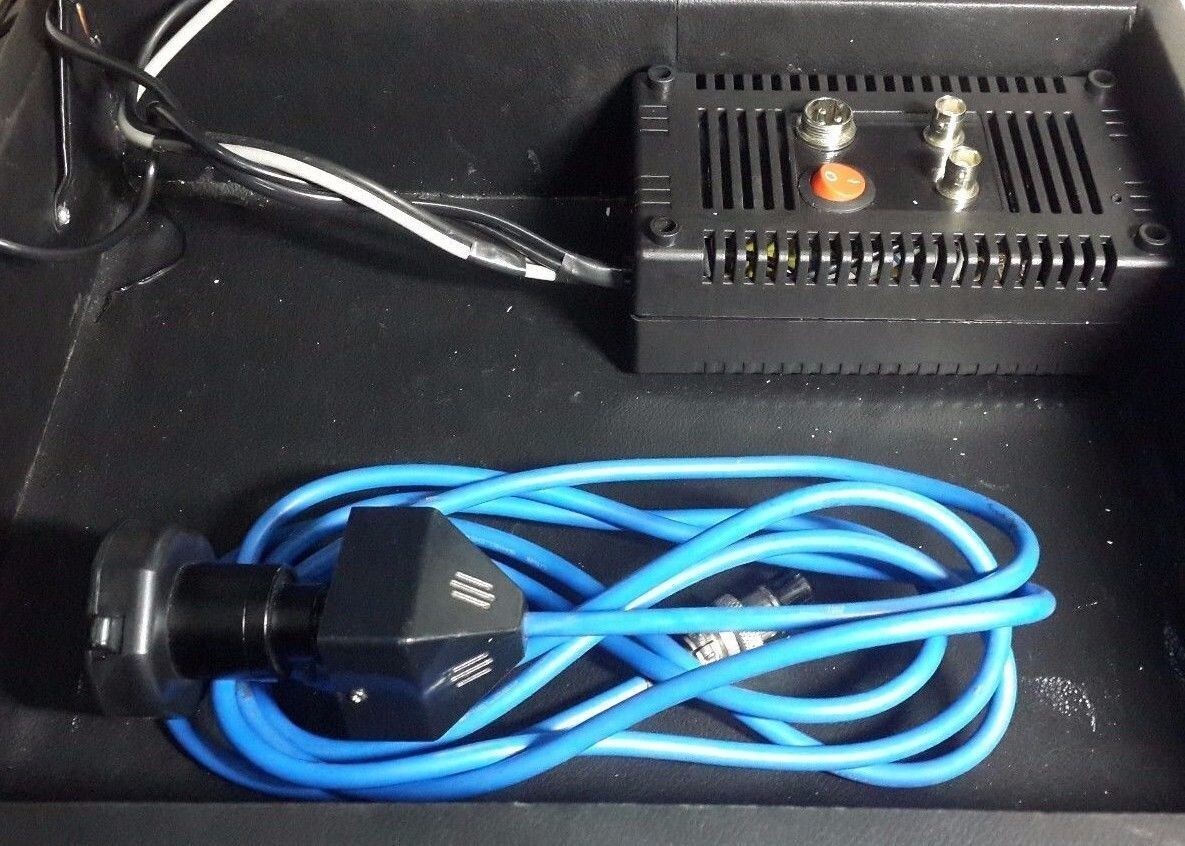

Endoscope Camera with Coupler

- This Endoscopy Camera can be used with the Any Endoscope, for viewing the Live Image, on TV Monitor.

- Excellent Image Quality

- 1/4" Color CCD Video camera chip

- Universal C-mount Eyepiece coupler to connect with various rigid and flexible endoscopes

- Special treatment inside of the coupler to reduce the air, which makes it not easy to be fogged.

- Good and steady image quality for long term use

-  Special treatment for the mechanical structures to bring

Technical Specification of CCD Camera

Image Device: ¼” Color CCD (Sony Chip Set)

Picture Elements: NTSC- 510 x 492, PAL- 500 x 582

Resolution: 330 TVL

Min. Illumination: 0.2 Lux / F 1.2

S/N Ratio: More Than 48 dB

Electronic Shutter: NTSC: 1/60s~1/100,000, PAL:1/50s~1/100,000s

Gamma: 0.45

Lens: CS or C Mount (optional)

Gain Control: Auto

Sync. System: Internal

Back Light Comp.: On/Off

Audio Output: 2Vp/50 Ohms (optional)

Video Output: 1 Vp-p / 75 Ohms

Power Supply: 12V DC + 10%

Power Consumption: DC / 150mA Max.

Operating Temp: -10°C to 50°C (14°F to 122°F)

 --------------------------------------------------------------------------------------------------

Design and Specifications are subject to change as an improvement process with or without prior notice
