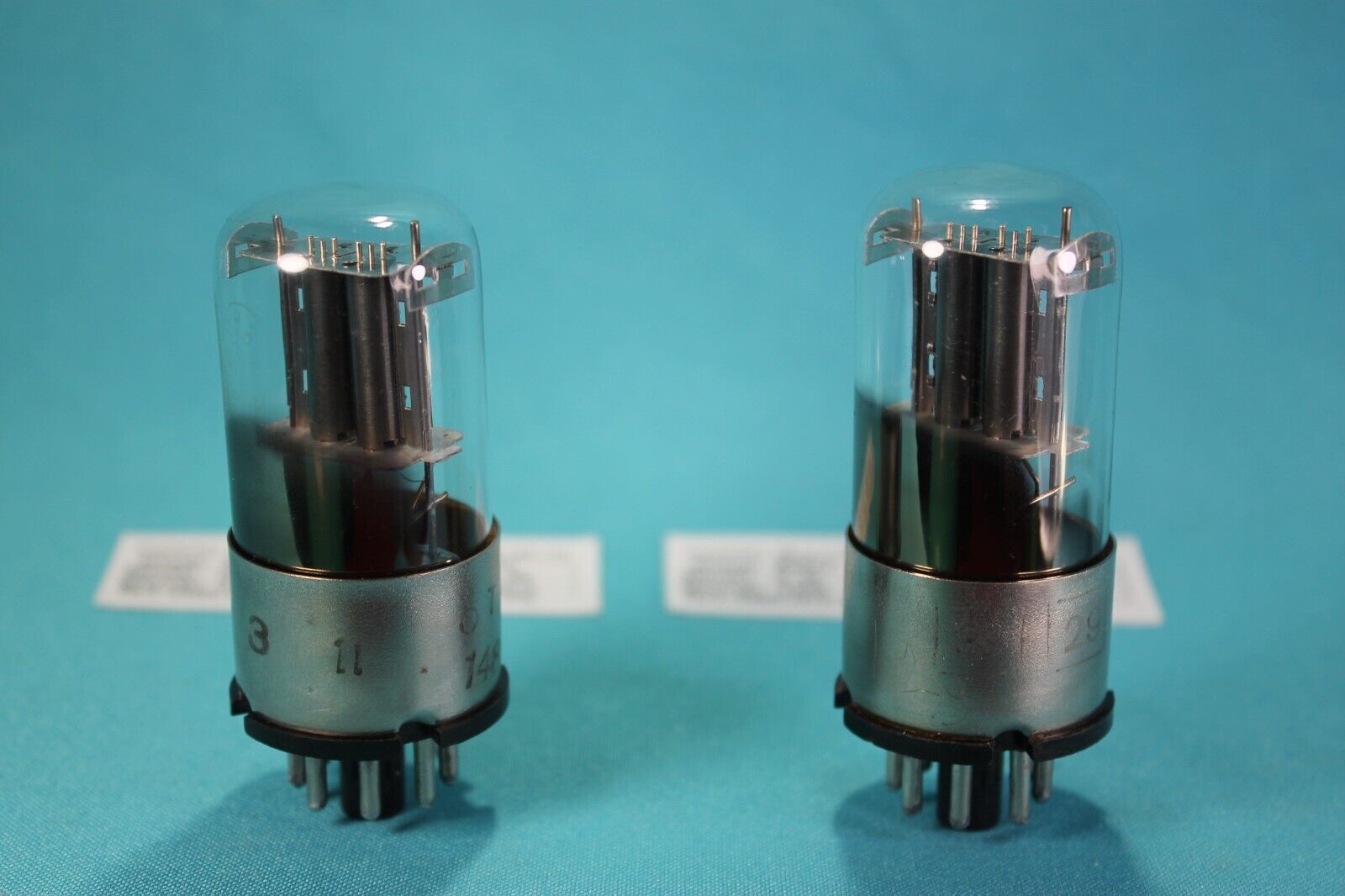

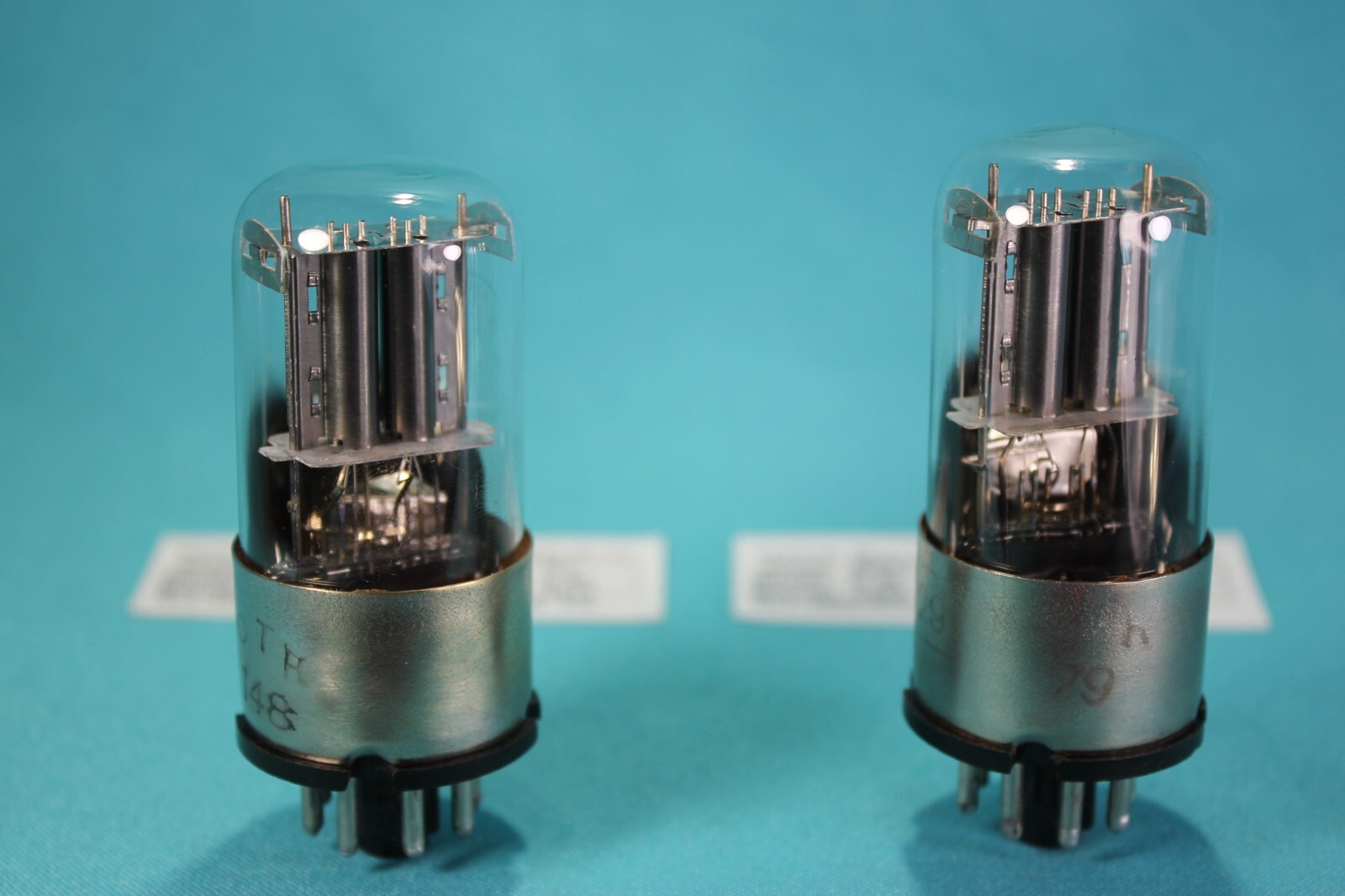

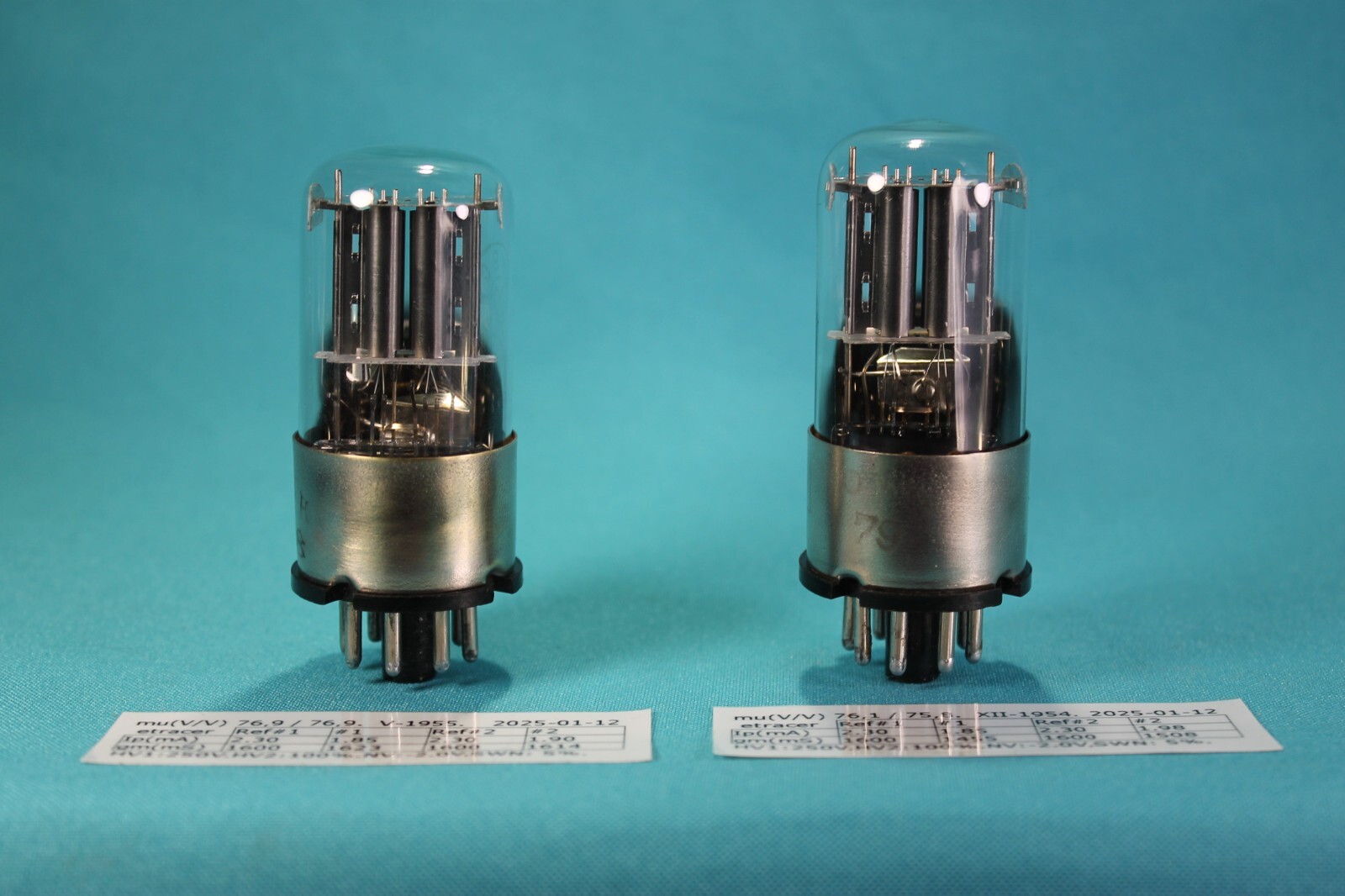

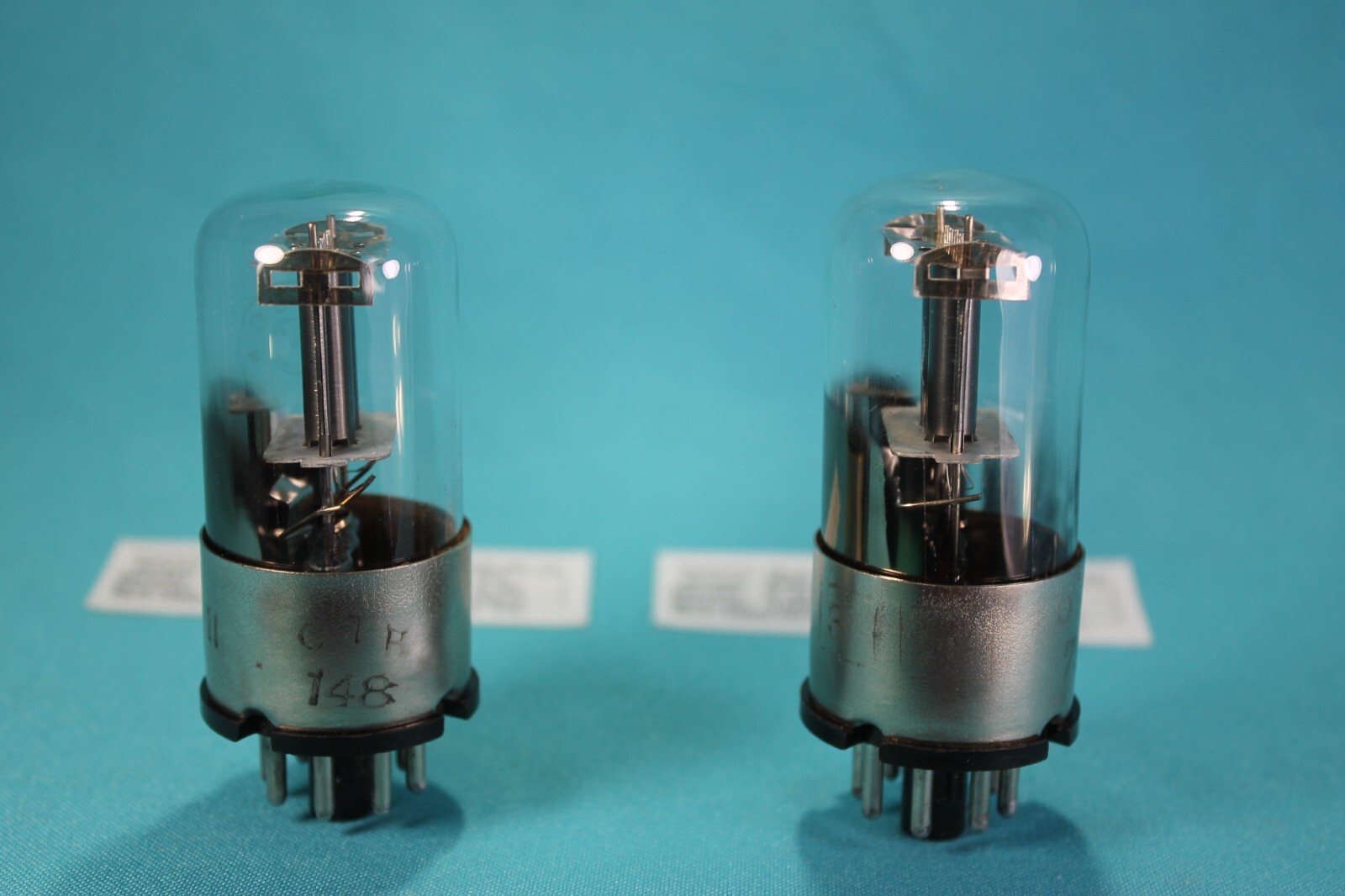

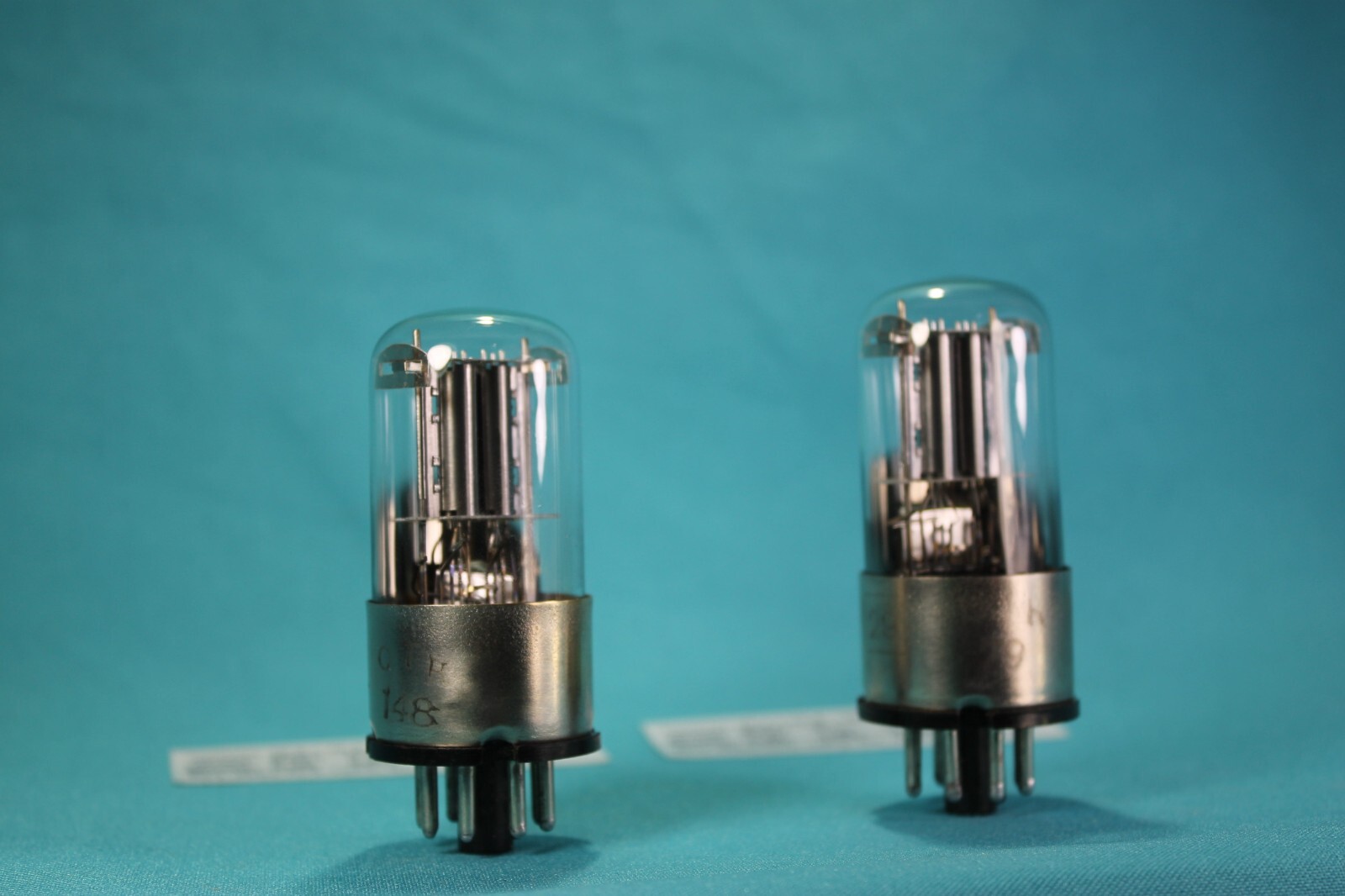

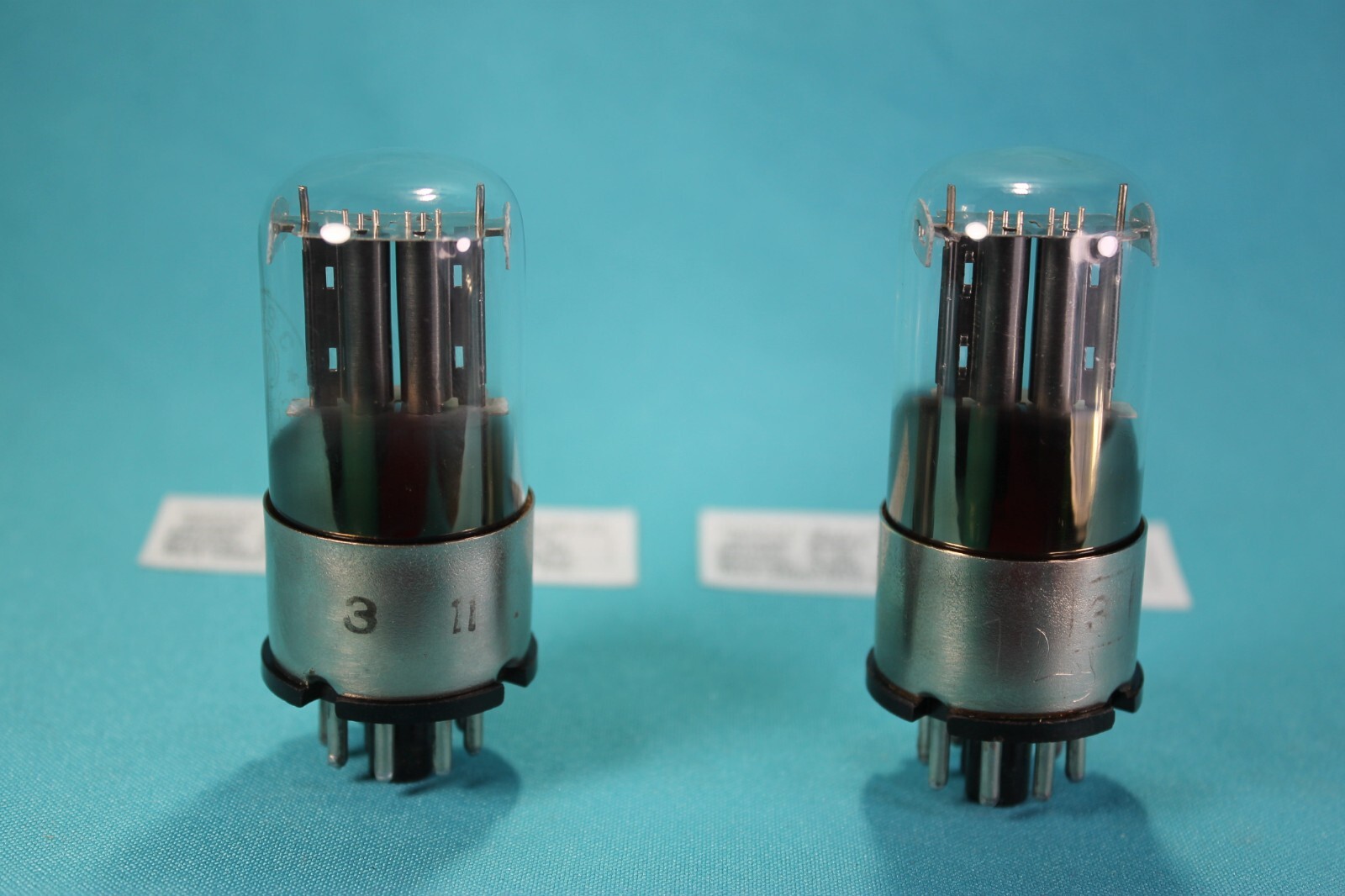

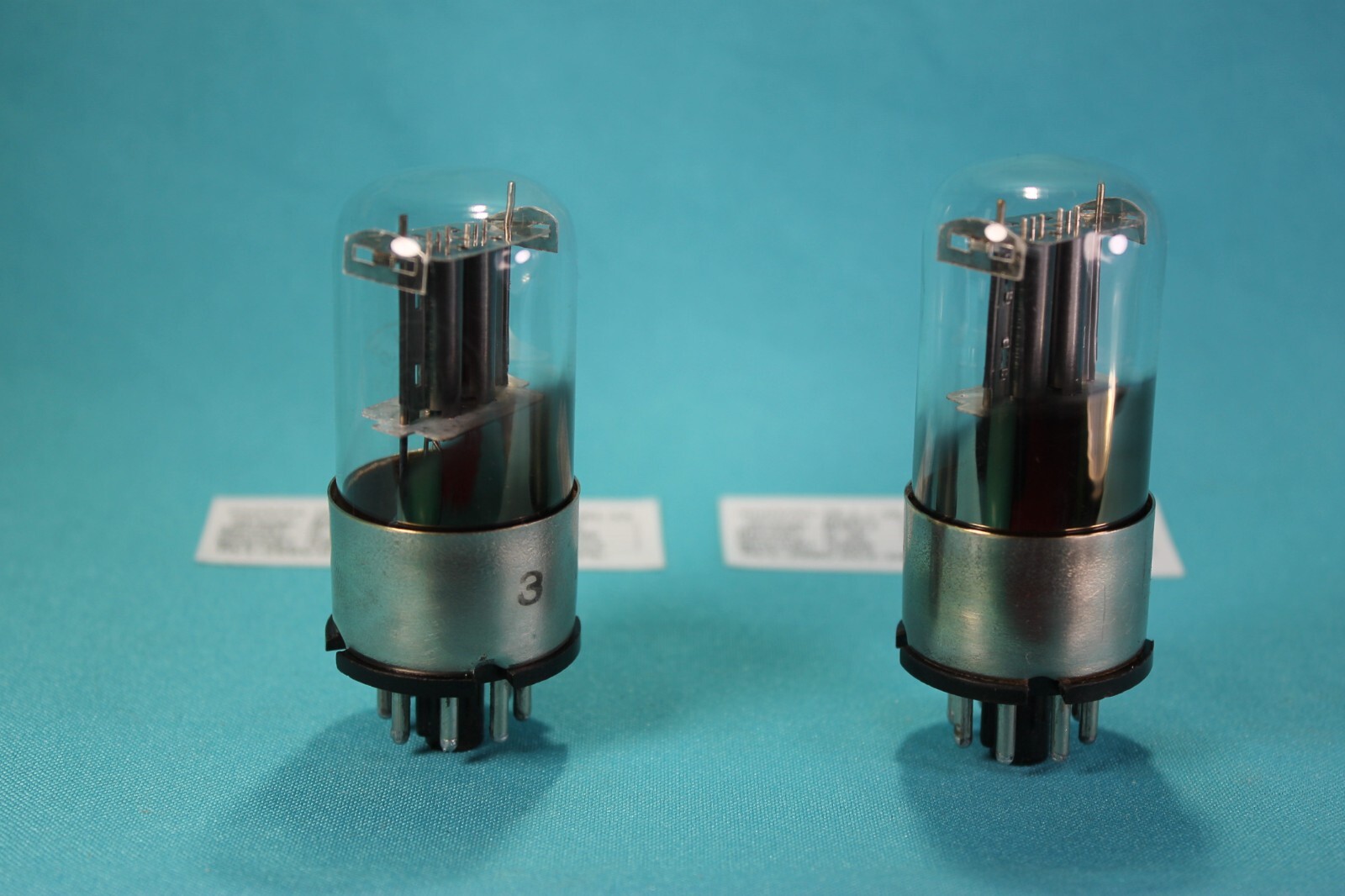

MATCHED PAIR 6N9S/6SL7/6SU7/1579. MELZ.METAL BASE.DOUBLE TRIODE.ETRACER TESTED.

By Melz

£91.63

Transparent Disclosure: Our Commitment to Honesty

In alignment with our commitment to transparency and integrity, we want to clearly disclose that product prices and descriptions may vary on the websites of our retail partners.

We encourage you to visit the retailer's site directly for the most current images, products, prices, and descriptions.

It's important to us that you're informed Zeppy may receive compensation for some listings featured on our site.

Additionally, we want to be upfront about our use of affiliate links; our affiliations, including but not limited to the eBay Partner Network, support our mission to provide valuable content and offerings to you.

> View the origional listing on eBay

Description

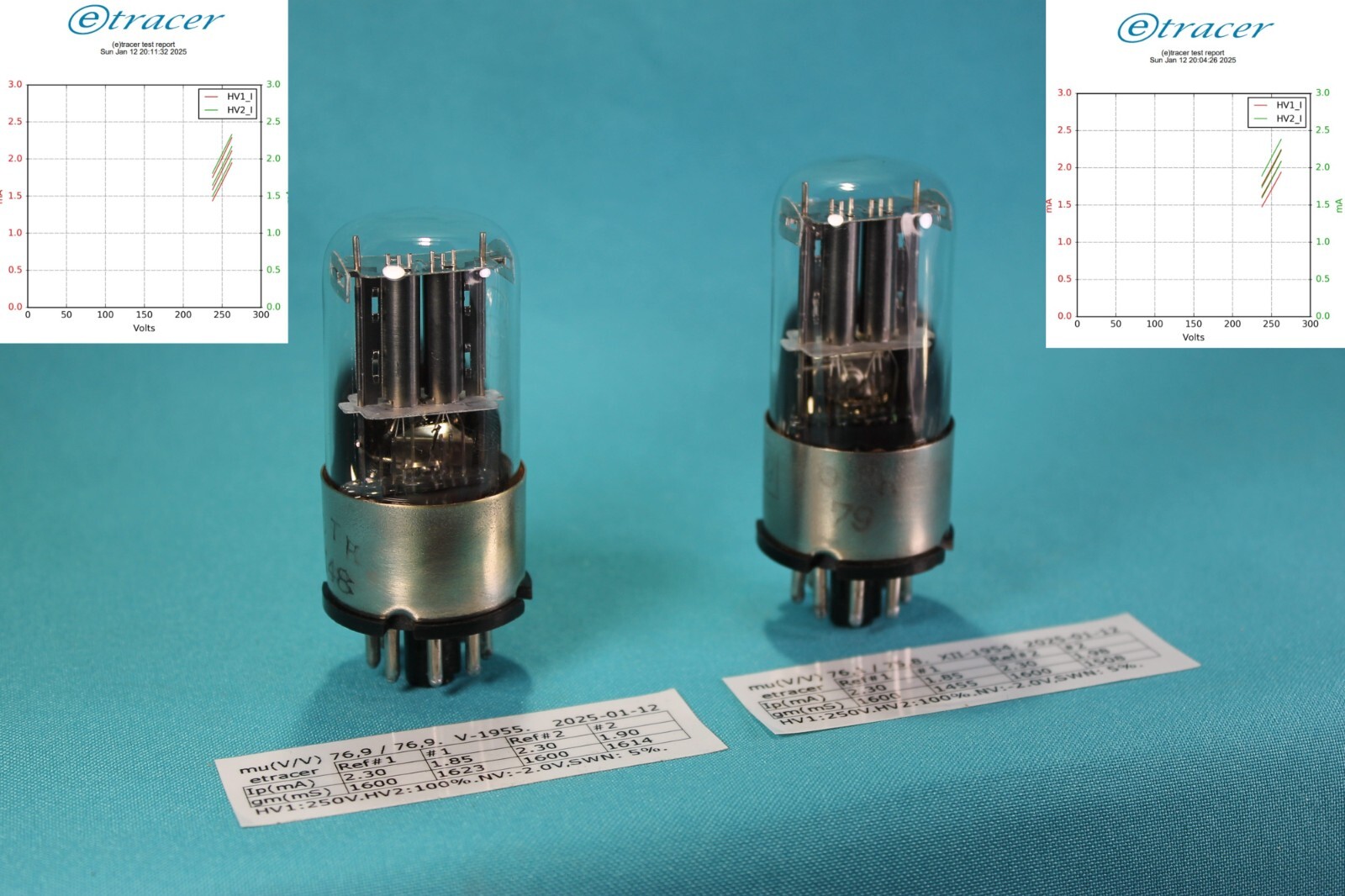

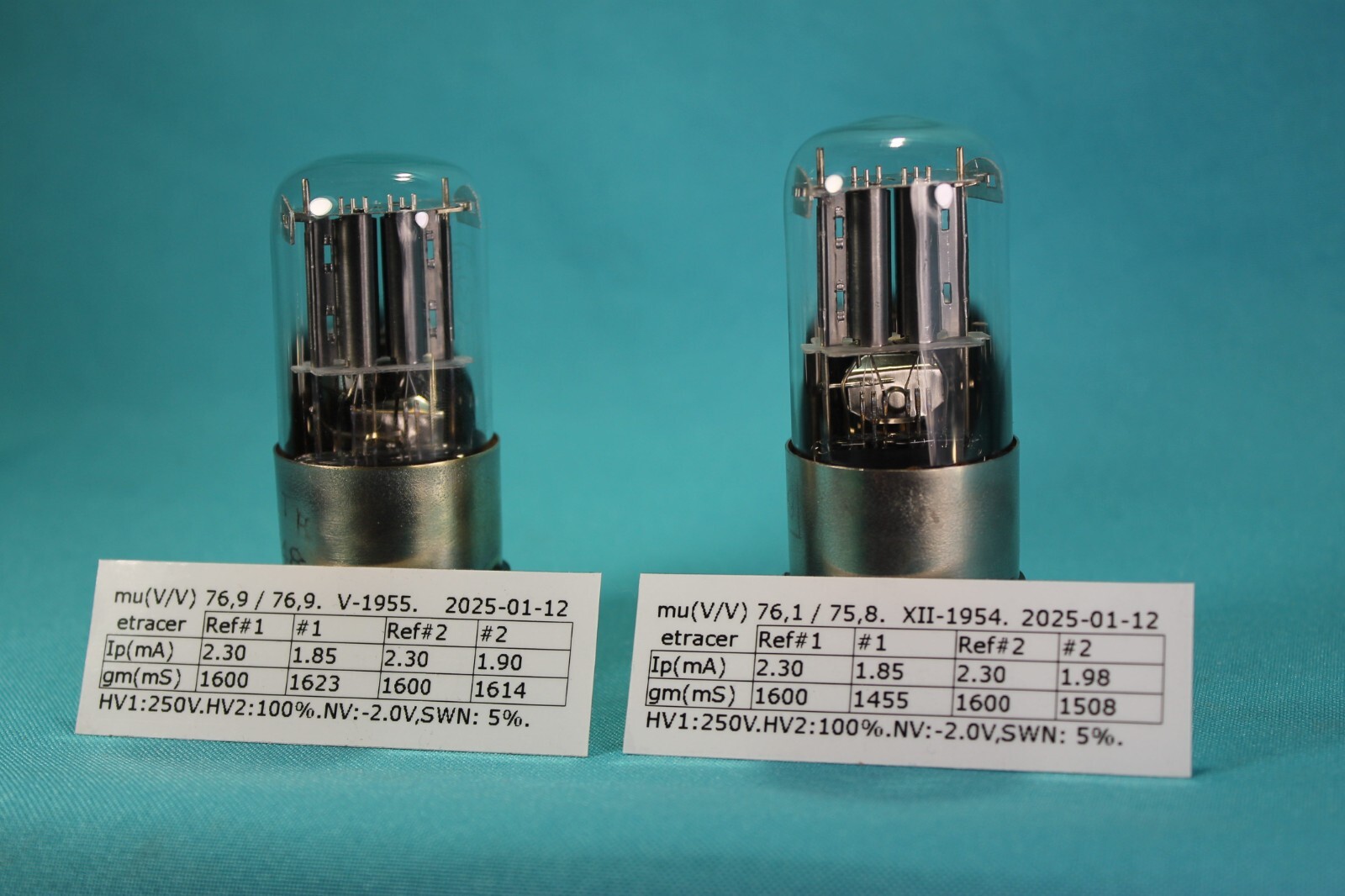

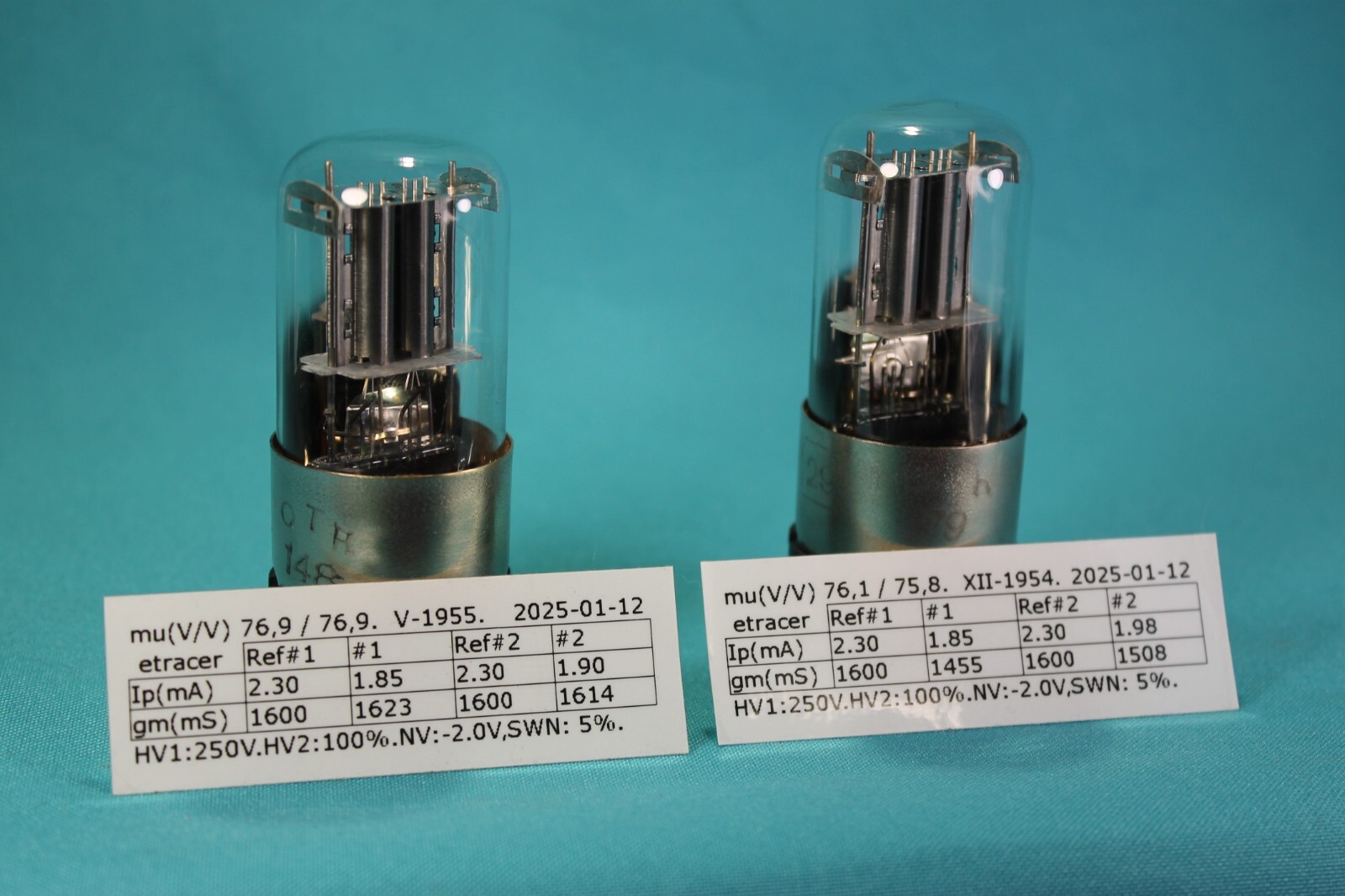

# Etracer quick-test report

# Test configuration file:6SL7.etd

# Date and Time: 2025-01-12 20:01:52

============== Test Setup ==============

HV1: 250V, swing: 5%

HV2: Linked to HV1, 100%

NEGV: -2.00V, swing: 5.00%

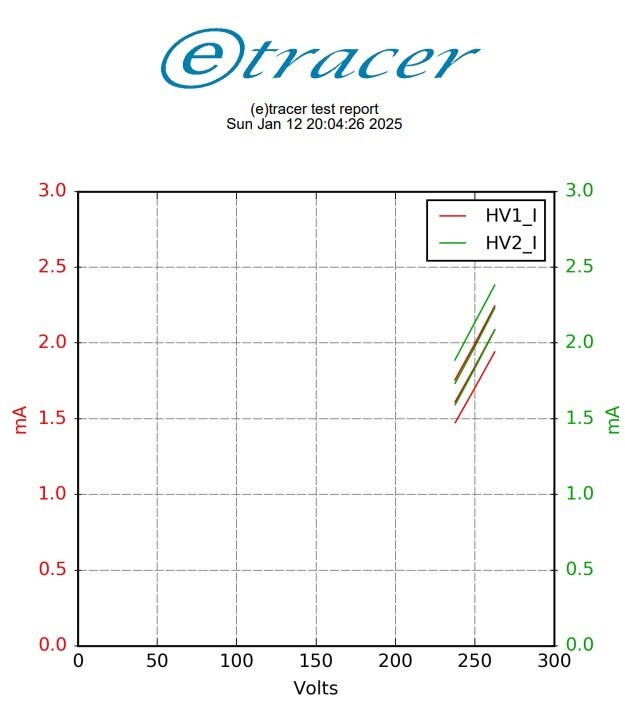

=========== Measurment Data ===========

# (NEGV(V),HV1(V),HV1_I(mA),HV_2(V),HV2_I(mA))

(-1.90,237.45,1.76,237.59,1.89)

(-1.90,249.96,1.99,250.07,2.13)

(-1.90,262.50,2.24,262.56,2.38)

(-2.00,237.53,1.61,237.58,1.73)

(-2.00,250.09,1.85,250.08,1.98)

(-2.00,262.52,2.09,262.59,2.23)

(-2.10,237.64,1.47,237.60,1.59)

(-2.10,249.98,1.70,250.05,1.83)

(-2.10,262.50,1.94,262.59,2.08)

========= Section 1 Parameters =========

current:1.85 mA, reference:2.30 mA, percent: 80.2 %

rp:52312 ohms, reference:44000 ohms, percent: 118.9 %

gm:1455 umhos, reference:1600 umhos, percent: 91.0 %

mu:76.1 V/V, reference:70.0 V/V, percent: 108.8 %

========= Section 2 Parameters =========

current:1.98 mA, reference:2.30 mA, percent: 86.0 %

rp:50259 ohms, reference:44000 ohms, percent: 114.2 %

gm:1508 umhos, reference:1600 umhos, percent: 94.3 %

mu:75.8 V/V, reference:70.0 V/V, percent: 108.3 %

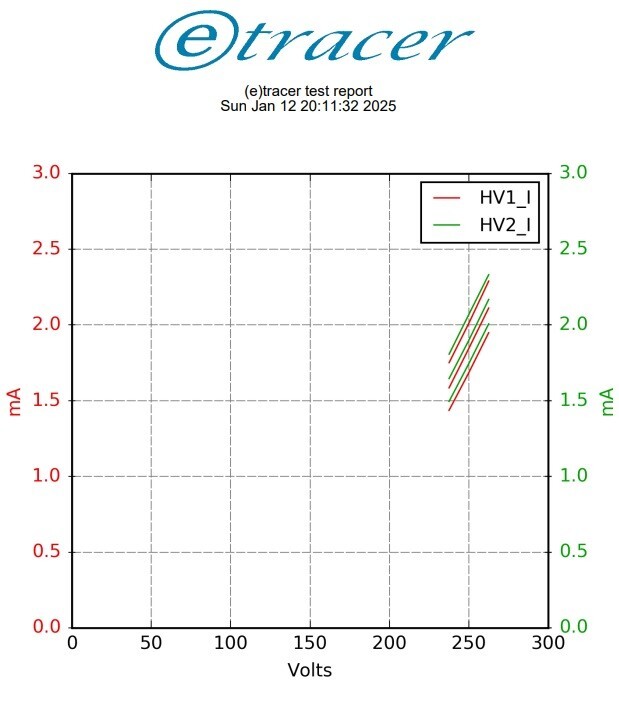

# Etracer quick-test report

# Test configuration file:6SL7.etd

# Date and Time: 2025-01-12 20:11:22

============== Test Setup ==============

HV1: 250V, swing: 5%

HV2: Linked to HV1, 100%

NEGV: -2.00V, swing: 5.00%

=========== Measurment Data ===========

# (NEGV(V),HV1(V),HV1_I(mA),HV_2(V),HV2_I(mA))

(-1.90,237.56,1.75,237.59,1.81)

(-1.90,249.94,2.01,250.05,2.07)

(-1.90,262.48,2.29,262.52,2.33)

(-2.00,237.54,1.58,237.65,1.65)

(-2.00,250.05,1.85,250.08,1.90)

(-2.00,262.48,2.11,262.54,2.17)

(-2.10,237.51,1.44,237.61,1.49)

(-2.10,250.00,1.69,250.11,1.75)

(-2.10,262.46,1.95,262.60,2.01)

========= Section 1 Parameters =========

current:1.85 mA, reference:2.30 mA, percent: 80.3 %

rp:47349 ohms, reference:44000 ohms, percent: 107.6 %

gm:1623 umhos, reference:1600 umhos, percent: 101.5 %

mu:76.9 V/V, reference:70.0 V/V, percent: 109.8 %

========= Section 2 Parameters =========

current:1.90 mA, reference:2.30 mA, percent: 82.6 %

rp:47631 ohms, reference:44000 ohms, percent: 108.3 %

gm:1614 umhos, reference:1600 umhos, percent: 100.9 %

mu:76.9 V/V, reference:70.0 V/V, percent: 109.8 %
